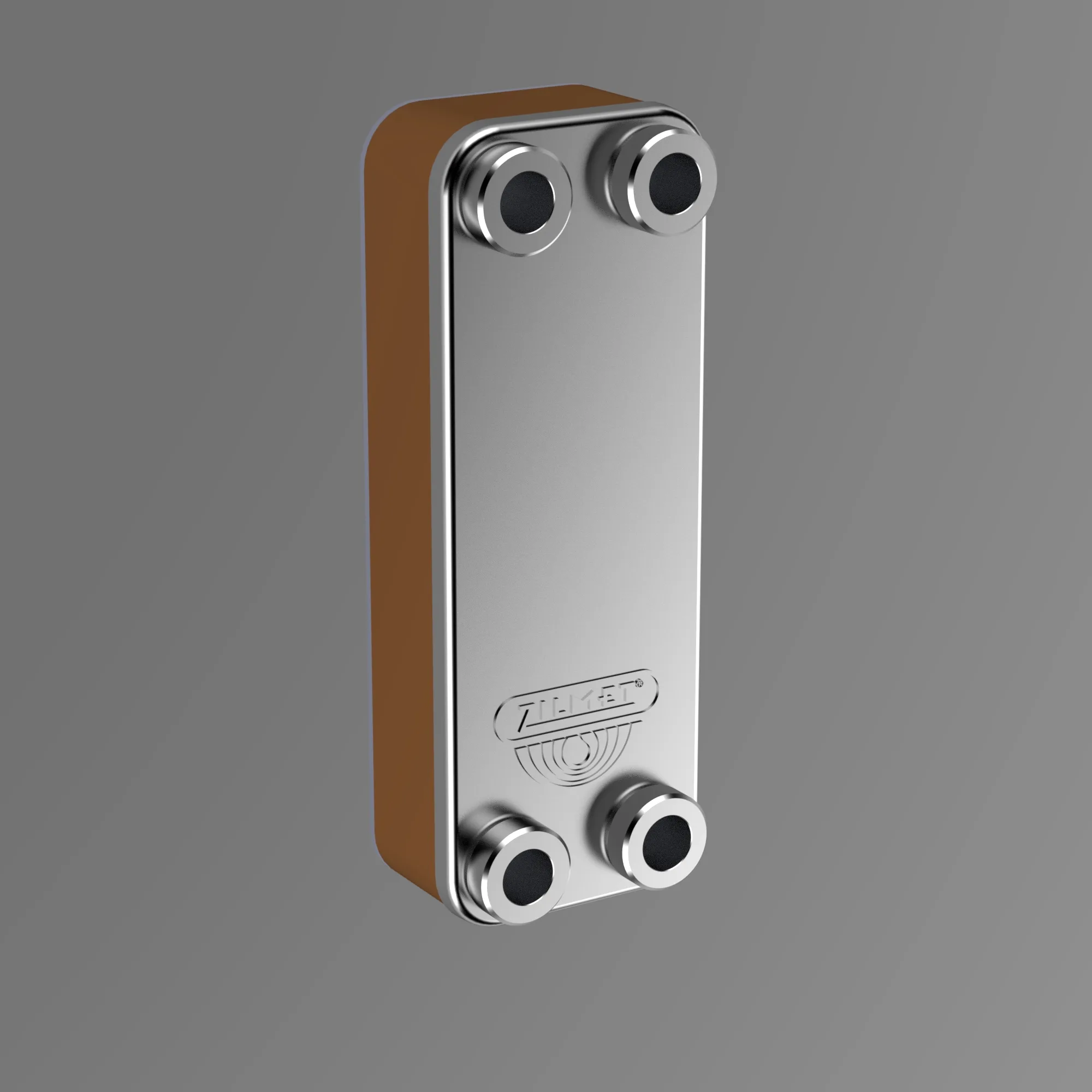

ZB 200

Technical features
Maximum operating pressure 8 bars
Maximum operating temperature-10°C / +120°C
Plate materialAISI 316 L stainless steel
Fittings materialAISI 316 stainless steel
Standard fittingsG1/2 – G3/4
Brazing materialCopper 99.9%
Number of plates8 – 40
Measurements and weights
Length195mm
Greater wheelbase154 mm
Length88mm
Smaller wheelbase42mm
Height(3 + 2.4 x N) mm*
Weight(0.076 + 0.066 x N) Kg*

*Data subject to tolerance.
