Technical features
Maximum operating pressure 8 bars
Maximum operating temperature-10°C / +120°C
Plate materialAISI 316 L stainless steel
Standard fitting materialAISI 316 stainless steel
Standard fittingsG1/2 – G3/4
Brazing materialCopper 99.9%
Number of plates8 – 40
Measurements and weights
Length190mm
Greater wheelbase154 mm
Length77 mm
Smaller wheelbase40 mm
Height(7 + 2.3 x N) mm*
Weight(0.219+ 0.043 x N) Kg*

*Data subject to tolerance.

Would you like to know more?

Click and find out everything you need to know about

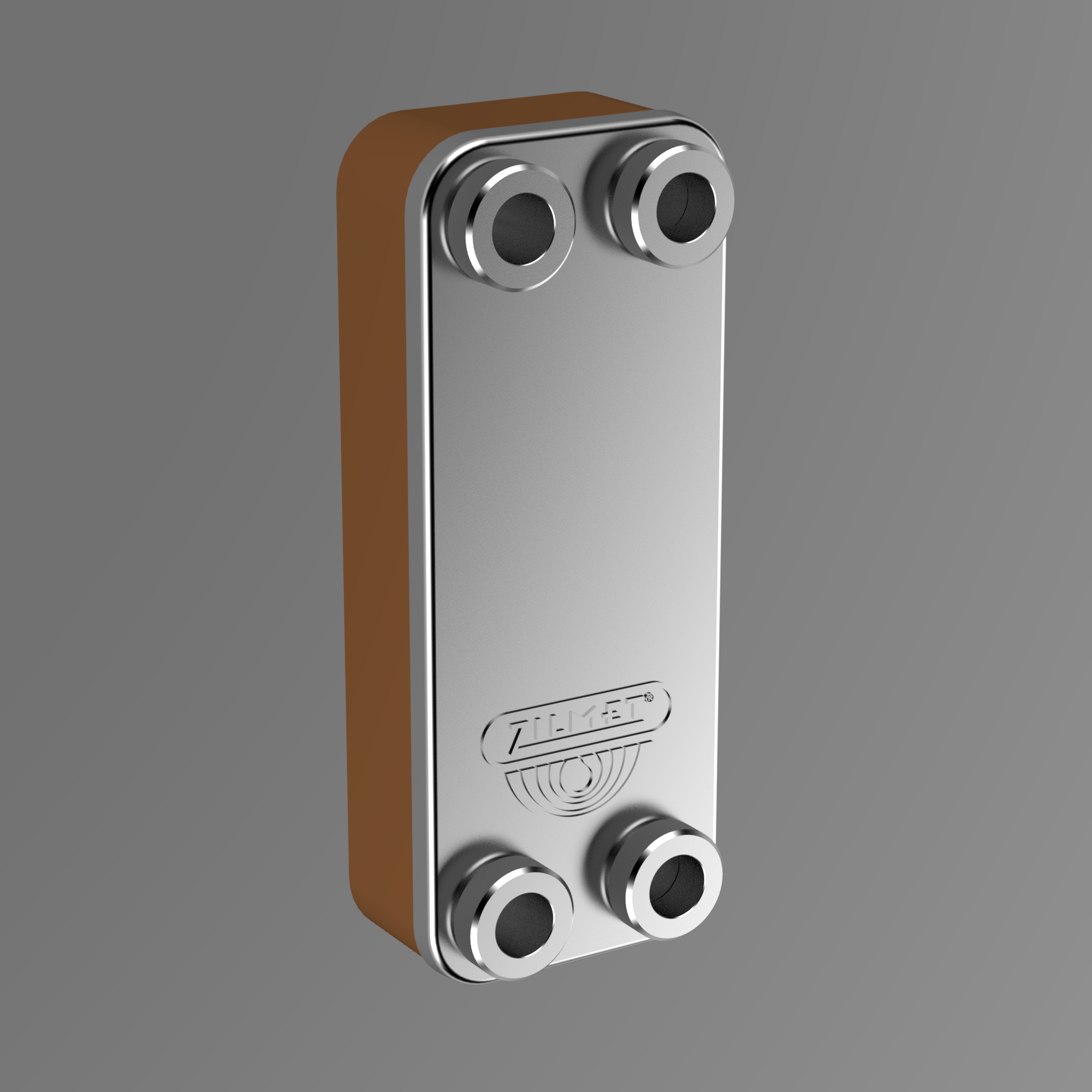

ZB 190
